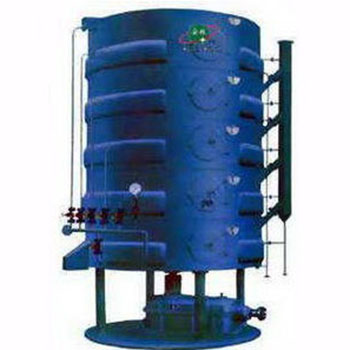

Oilseeds roasting is a necessary pre-treatment to process edible oil and thus steam roasting machine is used undoubtedly.Oil production technology depends on 30% pressing and 70% roasting, so it’s a key part to choose the best oil seeds roaster so as to increase oil quality. Vertical steam cooker roaster can process seeds by heating, steaming and stir-frying, it will improve quality of crude oil and oil cakes, and increase oil yield.
* This roaster is enclosed type and can avoid heat scattering outside; multifunctional to steam and fry oilseeds, thus speed up oilseed fried speed.
* Continuous tilting work, fried materials are stirred continuously to make their surface contact with the pan evenly, which avoids some imperfections of the fried seeds such as raw and cooked not evenly, flammable and easy to coke.
* Compact structure, convenient operation, high efficacy.* Best quality and service, reasonable price. Wide application.
* Water content: 5-10 %; Temperature: 105-110 degrees.
Steam cooker roaster is suitable for roasting/drying different oilseeds, such as rapeseeds, peanut, soybean, sesame seeds, cottonseed, coconut, palm, rice bran, corn embryo, etc to swell the oil molecule, improve oil production capacity and oil output rate.
Technology Data
| Model |
ZCL120 ×4 |
ZCL150 ×5 |
ZCL180 ×5 |
ZCL210 ×5 |
ZCL250 ×5(6) |
ZCL250 ×7 |
ZCL300 ×5(6) |
| Layers | 4 | 5 | 5 | 5 | 5(6) | 7 | 5(6) |
| Capacity(T/D) | 15-20 | 25-30 | 35-50 | 50-80 | 80-120 | 140-160 | 170-190 |
| Main pressure material | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A |
| Design Pressure(MPa) | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 |
| Design Temperature(℃) | 168.2 | 169.6 | 169.6 | 164 | 164 | 164 | 164 |
| Working Pressure(MPa) | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 |
| Working Medium | Saturate Steam | Saturate Steam | Saturate Steam | Saturate Steam | Saturate Steam | Saturate Steam | Saturate Steam |
| Corrosion(mm) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Internal Capacity(m^3) | 0.44 | 0.65 | 1.31 | 1.99 | 2.7(3.24) | 3.78 | 3.9(4.68) |
| Heating Area(m^2) | 7.6 | 14.15 | 19.4 | 25 |
34.14 (41) |
47.94 |
57.5 (69) |
| Inner Diameter of vessel(mm) | ф1200 | ф1500 | ф1800 | ф2100 | ф2500 | ф2500 | ф3000 |
| Vessel Category | First Class | First Class | First Class | First Class | First Class | First Class | First Class |
| Rotating Speed of Main Shaft(r/min) | 32 | 32 | 32 | 32 | 20 | 18 | 18 |
| Reduction Ratio | 1：22.5 | 1：30 | 1：30 | 1：30 | 1：48.5 | 1：53 | 1：53 |
| Reducer Model | J22 | C032A | C032A | TBSZ30 | ZSL-40 | ZT760 | ZT-760 |
| Equipped Motor |
Y160M-6 7.5kW |
Y200L1-6 18.5Kw |
Y200L2-6 22Kw |
Y225M-6 30Kw |
Y250M-6 37Kw Y280S-6 45Kw |
Y280S-6 45KwW |
Y280S-6 45Kw Y280M-6 55kW |
| Dimension(L×W×H) |
2233× 1654× 2710 |
2175× 2075× 3850 |
2774× 2300× 4250 |
2900× 2440× 4250 |
4678 (5328) |
5986 |
4678 (5328) |
| Weight | 3100 | 5850 | 7200 | 9400 |
13600 (15400) |
17300 | - |
