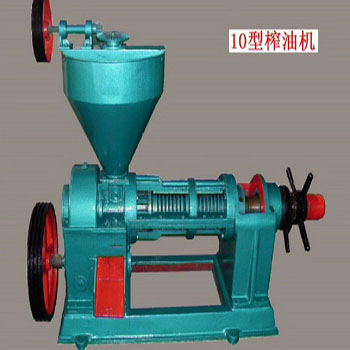

95/10 Oil Pressing Machine is mainly comprised of feeding chute, pressing cage, pressing shaft, gear box and main frame, etc. The meal enters the pressing cage from the chute, and be propelled, squeezed, turned, rubbed and pressed, the mechanical energy is converted into heat energy, and gradually expels the oil out, the oil flows out the slits of pressing cage, collected by the oil dripping chute, then flows into oil tank. The cake is expelled out from end of the machine.
YZYX10 pressing process(for reference only)
1. Soybean
Soybean→clean→crack(or rough milling)→softening→flaking→cooking→pressing→crude oil→filtering→refining→finished oil
2. Peanut kernel
Peanut kernel→clean→crack(or particle milling)→flaking→cooking→pressing→crude oil→filtering→refining→finished oil
3. Cottonseed
Cottonseed→delintling→clean→husker→separating→kernel→flaking→cooking→pressing→crude oil→filtering→refining→finished oil
4. Rapeseed, sesame
Raw material→clean→softening→flaking→cooking→pressing→crude oil→filtering→refining→finished oil
5. Rice bran
Rice bran→select→cooking(add 10% chaff)→pressing→crude oil→filtering→refining→finished oil
Technical Data
1. Dimension: (L×B×H) 1750×750×1300mm
2. Weight: 650kg
3. Motor power: 7.5kw, 6-pole
4. RPM of screw shaft: 26-36
5. Capacity: 3.5-4T/D
6. Residual oil content: 7-8%
95/10 Oil Pressing Machine is applicable for the
seed oil press of various kind of oil-bearing vegetable seeds such as rapeseed, cottonseed, sesame, peanut, soybean, teaseed, etc. Also can be used to produce ricebran oil when equipped with special pressing worms.
We assure the most precise design, high quality 95/10 Oil pressing Machine, mature project installation, and perfect after sale services.
