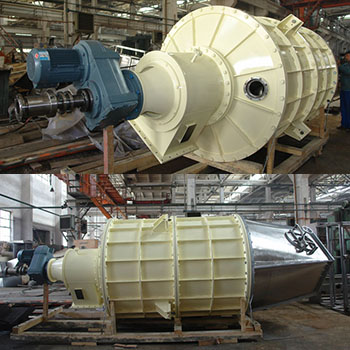

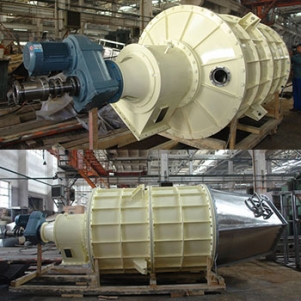

The vacuum spray dryer is used to dry the soap materials from liquid to solid rapidly and evenly. The whole vacuum drying system can control the fatty acid content of soap noodles and soaps.
Adopt hard tooth surface gear reducer and the oil pump inside lubricates automatically and makes a long lifespan. The thickness of barrel is 14 mm, the inner wall is processed by vertical lathe to achieve the coaxiality and smooth surface. The shaft is made by a Φ108 x 14 mm seamless tube. The nozzle (Φ10 mm) in the shaft sprays liquid soap, the three blades scrape them down, and the soap materials dry out fast and even.
The whole set of vacuum drying system can make soaps with fatty acid content from 55% to 80%.
Technical Parameters:
Capacity: 1000-2000/2000-4000 kg/hr;
Barrel Diameter: Φ 1200 /Φ 1500 mm;
Mouth Diameter: 10 mm;
Speed: 13 r/min;
Power: 3/5.5 kW.
The vacuum spray dryer is used to dry the soap materials from liquid to solid rapidly and evenly.
We assure the most precise design, high quality Soap Vacuum Spray Dryer Machine, mature project installation, and perfect after sale services.
