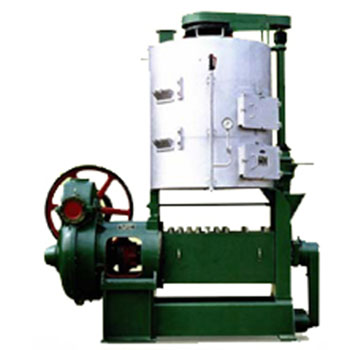

200 Oil Pressing Machine
200 Oil Pressing Machine is applicable for the pressing of vegetable oil-bearing crops such as rapeseed, peanut kernel, sesame, cottonseed kernel, soybean, copra, teaseed, sunflowerseed, etc.
We're here to help:
Easy ways to get the answers you need.
The machine is applicable for the pressing of vegetable oil-bearing crops such as rapeseed, peanut kernel, sesame, cottonseed kernel, soybean, copra, teaseed, sunflowerseed, etc. In accordance of the request of customer, the pressing worms can be replaced for the pressing of ricebran.
Features
1. The main parts main shaft, pressing worms, cage bars, gears, etc are made of high-quality alloy, and be surface hardened.
2. The meal is cooked and steamed in the cooker, according to different temperature requirement of different kind of seed, the temperature and water content can be regulated accordingly, so high quality oil can get.
3. From feeding to the outflowing of oil and cake, the machine is thorough automatic working, the maintenance is easy, and labor hand is saved.
Technology Data
1. Capacity: (handling amount of seed)
|
Seed |
Capacity(kg/24h ) |
Oil yield（% ) |
Dry cake residual oil rate（% ) |
|
Rapeseed |
9000～10000 |
33～38 |
6～7 |
|
Peanut kernel |
9000～10000 |
38～45 |
5～6 |
|
Sesame |
6500～7500 |
42～47 |
7～7.5 |
|
Cottonseed kernel |
9000～10000 |
30～33 |
5～6 |
|
Soybean |
8000～9000 |
11～14 |
5～6 |
|
Sunflower seed kernel |
7000～8000 |
22～25 |
8～9.5 |
|
Rice bran |
5500～6500 |
10～14 |
7～8 |
1、Auxiliary Cooker Diameter ： φ1220 mm；
2、Rotating speed of mixer shaft： 35 rpm；
3、RPM of main shaft ： 8 rpm；
4、RPM of feeding shaft ： 69 rpm；
5、Steam pressure： 5～6 kg/cm2；
6、Motor power： 18.5 kw；
7、Dimension(L×W×H)： 2850×1850×3270mm；
8、Weight： 5000 kg。
Note：
（1) The actual capacity may be more or less according to meal preparation condition and the kind of seed.
（2) For the pressing of rice bran, special pressing worms should be adopted.
200
oil press machine is applicable for the pressing of vegetable oil-bearing crops such as rapeseed, peanut kernel, sesame, cottonseed kernel, soybean, copra, teaseed, sunflowerseed, etc.
We assure the most precise design, high quality 200 Oil pressing Machine, mature project installation, and perfect after sale services.
