Depericarper (splitter). Palm kernel separates from fibers through floating dry processing during
palm oil processing machine. Fibers and other light stuff are blown appearance.
Crushing. The crusher breaks palm kernel to separate kernel and shell. The hydrocyclone separates palm kernel from shell particles by using of their proportion.
After palm oil pressing process, solids parts (mixtures of palm fibre and nuts) will be discharged out of the screw press. In palm kernel recovery plant, the nuts and fibre will be separated by physical method. The fibre are burned in steam boiler as biomass fuel. The super-heated steam is then used to drive turbines to generate electricity for the to the complete palm oil extraction plant. The nuts are send to crushing system to remove the shell. Palm kernel is another by-product of palm oil mill, which can be further processed in palm kernel processing plant to extract palm kernel oil, while the shells are sold as fuel to other industries.

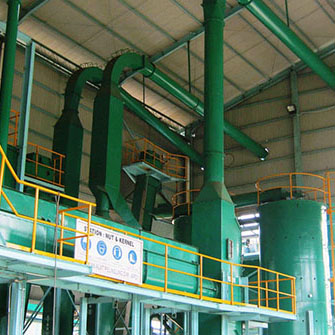

Palm Kernel Recovery System
After palm oil extraction, the nuts and fiber are recovered from the mash. The mixture of nut and fiber is dried first and then separated from each other in depericarper (nut & fibre separator). As fibers is light in weight, they are carried away by air flow, while nuts are fall into a rotary drum. The separated fibers are used in the boiler as fuel. The nuts are sent to nut silo. By use of cracking machinery, the palm kernel will be recovered from the nuts. The nut shells are collected and feed into boiler with fiber. The kernels are further processed in palm kernel oil extraction plant to produce palm kernel oil (PKO) and palm kernel cake (PKC).
The rate of FFA increase is much faster in broken kernels. So try to keep the kernel breakage as low as possible during the nut crushing processes.
The equipment list of palm kernel recovery station:
1.Cake Breaker Conveyor c/w Maintenance Platform&Supports
2.Nut Polishing Drum
3.Depericarper Column c/w Supports
4.Fibre Ducting’s&Air Ducting
5.Fibre Cyclone
6.Fibre Fan
7.Fibre Cyclone Airlock
8.Fibre Cyclone Structure&Platform
9.Nut Auger conveyor
10.Destoner Column c/w Fan,Ducting and Airlock
11.Nut Grading Drum
12.Nut Hopper c/w structure
13.Nut Vibrating Feeder
14.Super Craker(Ripple Mill)
15.Steel Support,Maintained Platform
16.Cracked Mixture Conveyor
17.Cracked Mixture Elevator
18.Winnowing System No.1&2Cyclone&Ducting
19.Winnowing Fan No.1&2
20.Winnowing Airlock
21.Hydrocyclone c/w Dripping Drum&Platform(2 stage)
22.Hydrocyclone Pump
23.Hydrocyclone Feeder Conveyor
24.Wet Kernel Conveyor No.1
25.Wet Kernel Conveyor No.2
26.Wet Kernel Elevator
27.Wet Shell Conveyor
28.Wet Shell Transport System consisting of Cyclone Airlock Fan and support
29.Wet Kernel Distributing Conveyor
30.Sheel Silo
31.Kernel Silo Fan&Heater
32.Dry Kernerl Conveyor
33.Dry Kernerl Transport System consisting of Cyclone,Ducting’s,Airlock,Fan and support
34.Bulk Kernel Silo
35.Kernel Recovery Platform
Voltage:380V
Power(W):35KW
Dimension(L*W*H):Depend on different capacity
Weight:Depend on different capacity
● Palm oil refining machine enables high quality edible
oil refinery plant from crude palm oil efficiently.
● Palm oil fractionation technology divides palm oil into liquid and solid oil by different welding points and different solution of various triglycerides composing oil.
We assure the most precise design, high quality Palm Kernel Recovery Station Machine, mature project installation, and perfect after sale services.
